Part I: Initial Vulnerability Discovery

I recently conducted a security assessment of rConfig version 3.9.5 (www.rconfig.com), a network monitoring tool, and discovered several critical vulnerabilities. This is the first part of a multi-part series detailing these findings.

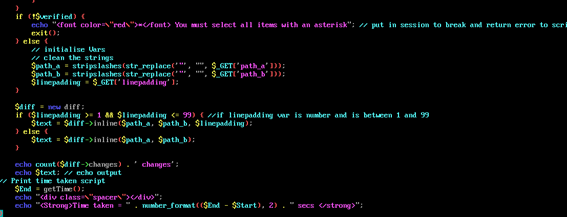

Local File Inclusion (LFI):

Location: /lib/crud/configcompare.crud.php

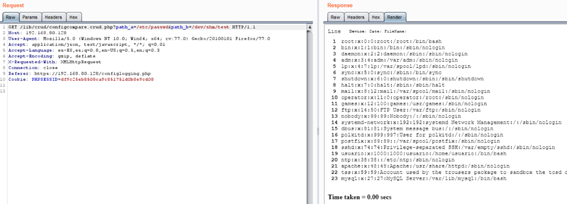

When comparing the path_a parameter to path_b, the file specified in path_a is disclosed if both files are completely different. The following example demonstrates reading /etc/passwd:

Arbitrary File Deletion:

Location: /lib/ajaxHandlers/ajaxDeleteAllLoggingFiles.php

This vulnerability allows deletion of any file by specifying:

• The file path using the path parameter
• The file extension using the ext parameter

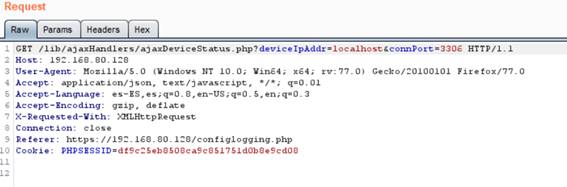

Server-Side Request Forgery (SSRF):

Location: /lib/ajaxHandlers/ajaxDeviceStatus.php

An attacker can establish connections to internal services using:

• deviceIpAddr parameter for the target
• connPort parameter for the port

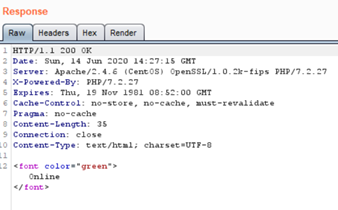

Open port response:

Cross-Site Scripting (XSS) Vulnerabilities:

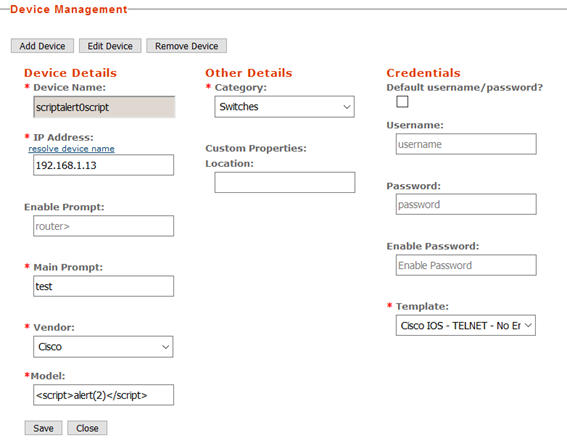

XSS #1 - Device Management:

Location: /devices.php > Add device

1. Inject payload <svg onload=alert(1)> in the Model field
2. Fill remaining required fields
3. Click Save
4. Visit /devicemgmt.php?deviceId=1&device=devicename

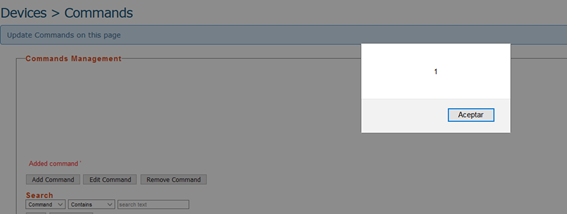

XSS #2 - Commands:

Location: /commands.php > Add command

1. Inject payload <svg onload=alert(1)> in the Command field
2. Click Save

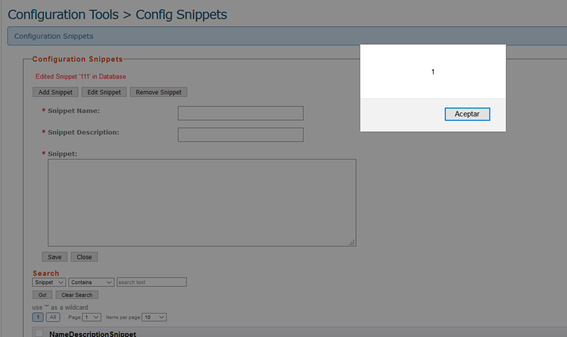

XSS #3 - Snippets:

Location: /snippets.php > Add snippet

1. Inject payload <svg onload=alert(1)> in the Snippet field
2. Fill remaining required fields
3. Click Save

Privilege Escalation Vulnerabilities:

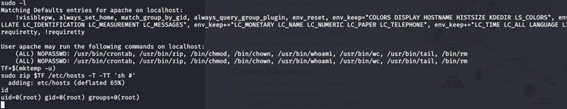

Method #1: Using sudo zip

Method #2: Using sudo crontab

Execute sudo crontab -e and then escape to shell with :!/bin/bash

Method #3: Arbitrary File Read

Leverage sudo permissions with tail following GTFOBins documentation

Part II: Authentication Bypass and Remote Code Execution

Following the initial vulnerability disclosure, I discovered three authenticated Remote Code Execution (RCE) vulnerabilities along with two authentication bypass methods (one leveraging information disclosure).

Important Note: Many previously disclosed vulnerabilities (with assigned CVEs) remained present in version 3.9.5, providing additional exploitation vectors.

Full Technical Details:

Complete technical analysis and proof-of-concept exploits are available in the SSD Advisory:

SSD Advisory - rConfig Unauthenticated RCE

Impact Summary:

The combination of these vulnerabilities allows for:

• Unauthenticated remote code execution
• Complete system compromise
• Arbitrary file operations
• Internal network reconnaissance via SSRF
• Privilege escalation to root

Timeline:

• Discovery: August 2020
• Public Disclosure: August 27, 2020

For questions or additional details about this research, please contact me via the channels listed on my About page.
